ITPOD-
SR201-S12R-NV-G2

Server ModelITPOD-SR201-S12R-NV-G2
Form Factor2U
Processor

1 x AMD EPYC 9004 (Genoa) or 9005 (Turin)

TDP up to 500 W with EVAC Plus heatsink

RAM12 DDR5 RDIMM memory slots at 4800/6400 MHz (one module per channel)
Storage subsystem

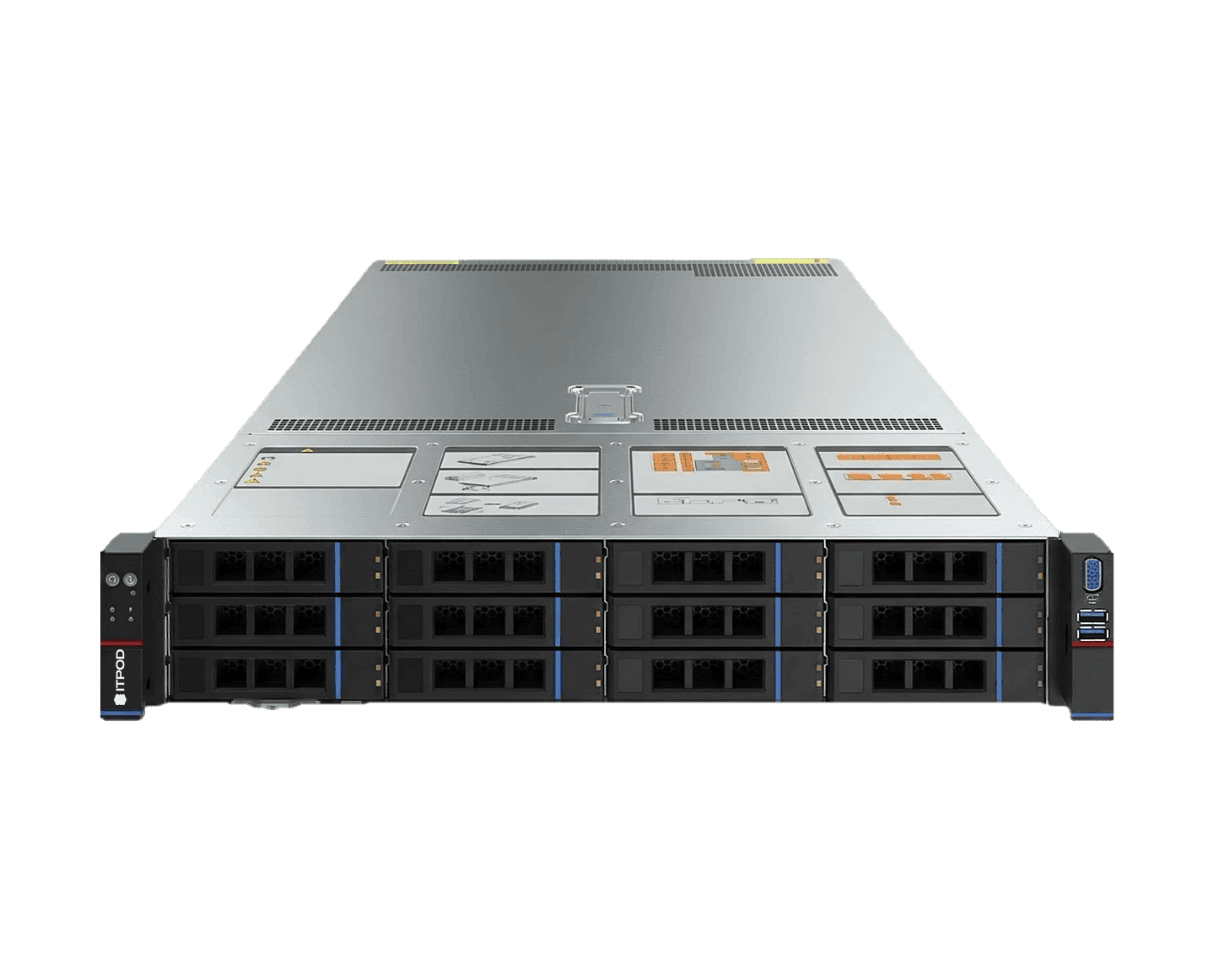

12 universal slots for 2.5” and 3.5” SATA/SAS/NVMe drives on the front panel with hot-swap support (NVMe drives connect directly to the motherboard via MCIO cables)

System drives: hardware RAID using M.2 NVMe drives

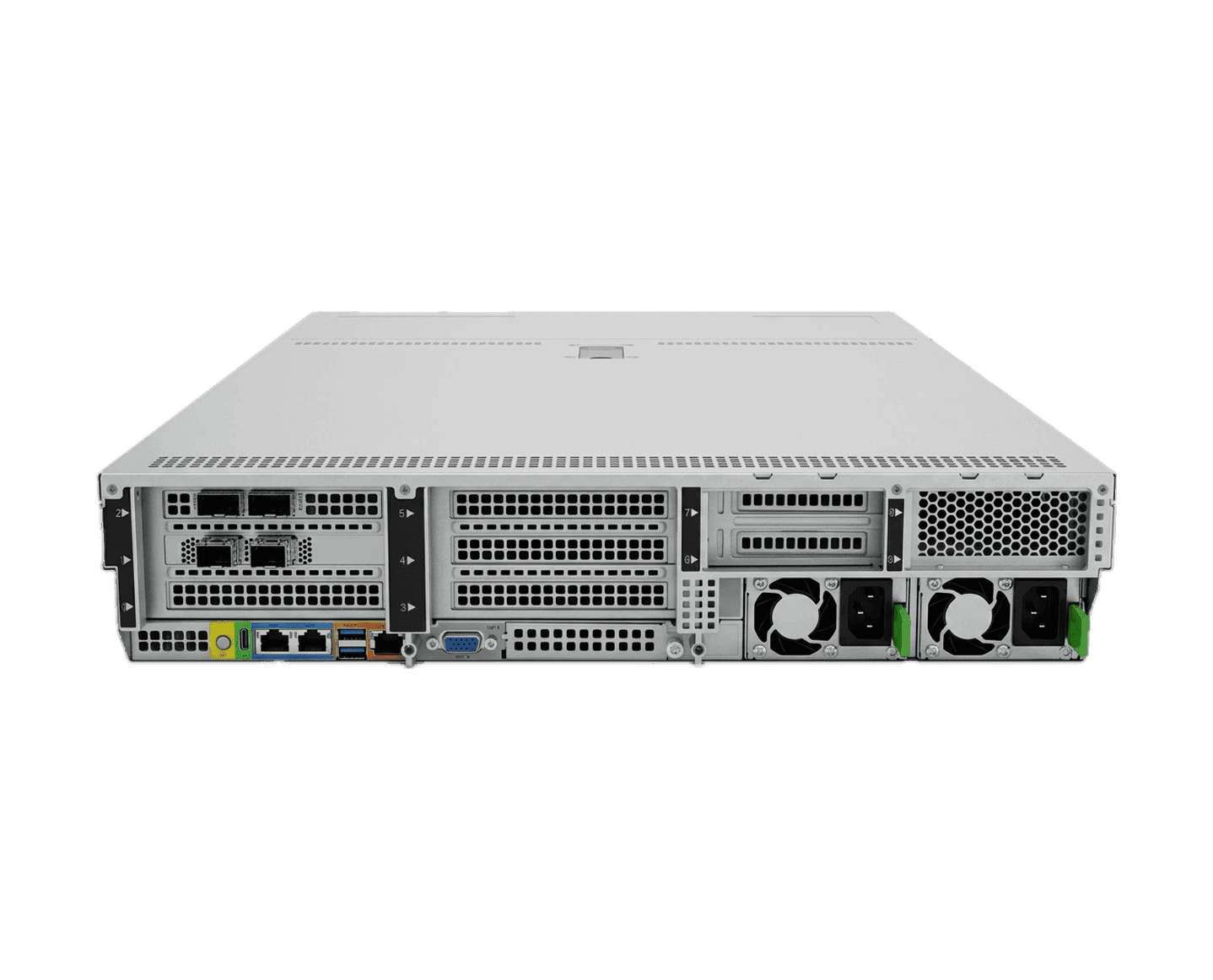

Ethernet interfaces2 x 1GbE RJ45 (Intel i350-AM2, integrated)
Expansion slots

1 OCP 3.0 slot

Riser 1: full-height PCIe 5.0 slots (1 – x16, 1 – x8)

Riser 2: full-height PCIe 5.0 slots (1 – x16, 1 – x8)

Riser 3: half-height PCIe 5.0 slots (2 – x8 or 1 – x16)

Riser 4: half-height PCIe 5.0 slots (2 – x8 or 1 – x16)

PCIe risers are optional

Cooling

6 hot-swappable fans (single-rotor or dual-rotor, depending on operating conditions)

Airflow distribution to the CPU, memory, and PCIe via plastic air ducts

Power Supplies2 units (1300W) 1+1 redundancy configuration
CPU coolers

Standard for classic EVAC data centers—CPUs up to 350 W at a cold aisle temperature of up to 45 °C

EVAC Plus—CPUs up to 500 W at 45 °C

Management systemDedicated BMC interface with an informative web GUI and support for Redfish 1.15, SNMPv3, and IPMI 2.0

Technical support on the client portal

Request arrow

Basic Initial Configuration of the ITPOD Server

Check Documentation arrow
Advantages of ITPOD

Professionalism

Every ITPOD Storage system is serviced by our professional support team. A comprehensive approach, including hardware and software, makes it possible to efficiently solve any problem in the shortest possible time. 24/7 support and spare parts warehouses ensure the same high level of service for all customers.

Advantages of ITPOD

Reliability

ITPOD Storage is implemented on time-proven hardware solutions and is based on the operating system of our technology partner vStack. It features integrated data protection functions and full redundancy of all active components.

Advantages of ITPOD

High performance

Data handling at ultra-high speeds is made possible by high-performance storage controllers and high-speed NVMe SSD drives. The End-to-End NVMe approach improves the performance of computing systems, allowing them to process large amounts of data with minimal latency.

Advantages of ITPOD

Storage efficiency

Leveraging efficient storage technologies can detect and eliminate duplicates, reduce physical storage capacity and lower capital and operational costs. They also save power and cooling, enabling more efficient data management.
